KIOSK (HT METERING UNIT)

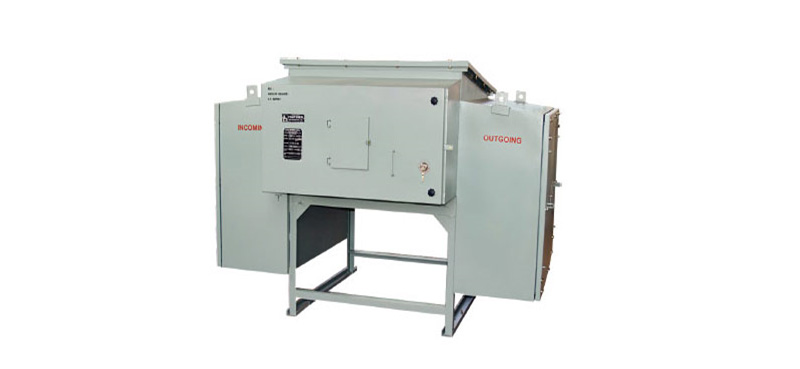

22kV Metering Cubical COMPACT (Horizontal) Type Specifications:
- This product is sometimes also referred as Metering Kiosk or Metering Panel
- Our Products are Type Tested at NABL Lab as per relevant Standards (IS/IEC)
- Metering Current Transformer (CT)
- Primary Current: 5A to Customer Requirement
- Secondary Current: 1A or 5A
- Burden: upto 30VA, Class: 0.2S / 0.2 / 0.5S / 0.5 / 1.0
- STC Rating: upto 26.2kA for 1sec., ISF<=5
- HSV/Insulation Level: 24/50/125 kVp
- Freq.: 50Hz, IS 2705 / IS 16227 / IEC 61869
- Metering Potential / Voltage Transformer (PT / VT)
- Ratio: 22000/√3/110/√3V, VF:1.2 Continuous
- VA/CL: upto 100VA, Class: 0.2 / 0.5 / 1.0
- 25 kVp
- Freq.: 50Hz, IS 3156 / IS 16227/ IEC 61869
- DIMENSIONS(mm): L- 2150, W- 1650, H- 1450
- HSV/Insulation Level: 24/50/1
